Technical Specifications

Brand
GARWARE
Category
SAFETY & SUN CONTROL FILM
Sub Category
Safety Films
Size
60 x 100
Roll Area
500 Sft/Sqmt

Description

Finish
Perfect Finish
Printing Platform Compatibility
Perfect Printing Platform Compatibility
About
MECHANICAL PROPERTIES Thickness-4MIL Tensile Strength At Break (MD/TD)->1900kg/cm2 Elongation At Break MD->130% Peel Strength-Above 2.500kg/inch Impact Test BS6206 For Class 'B'-Passes SOLAR PROPERTIES Visible Light Transmittance-90% Ultra Violet Transmittance -<1%Shading Coefficient-0.98 Emissivity-0.89 U Factor (BTU/hr./sq.ft.)-1.12 Total Solar Energy Rejection-13%

Product Description

Features

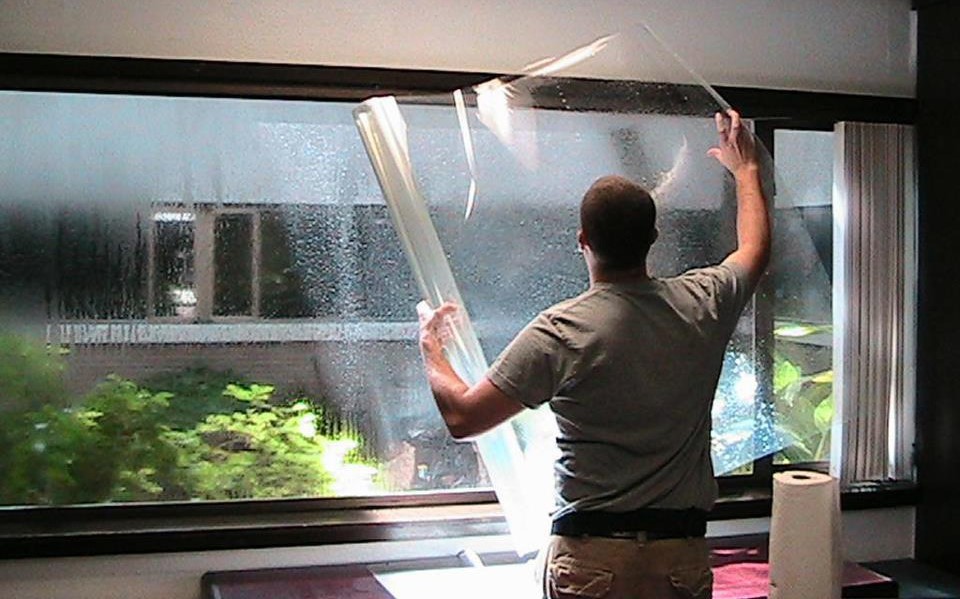

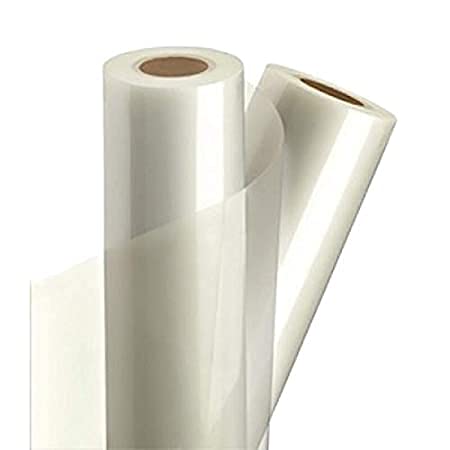

  • These are optically clear, transparent, high impact resistant Polyester Films, which once installed on glass, give additional strength to glass, reduce glare & prevent glass from splintering on impact.
  • Typical thicknesses are 4 Mil & 7 Mil.

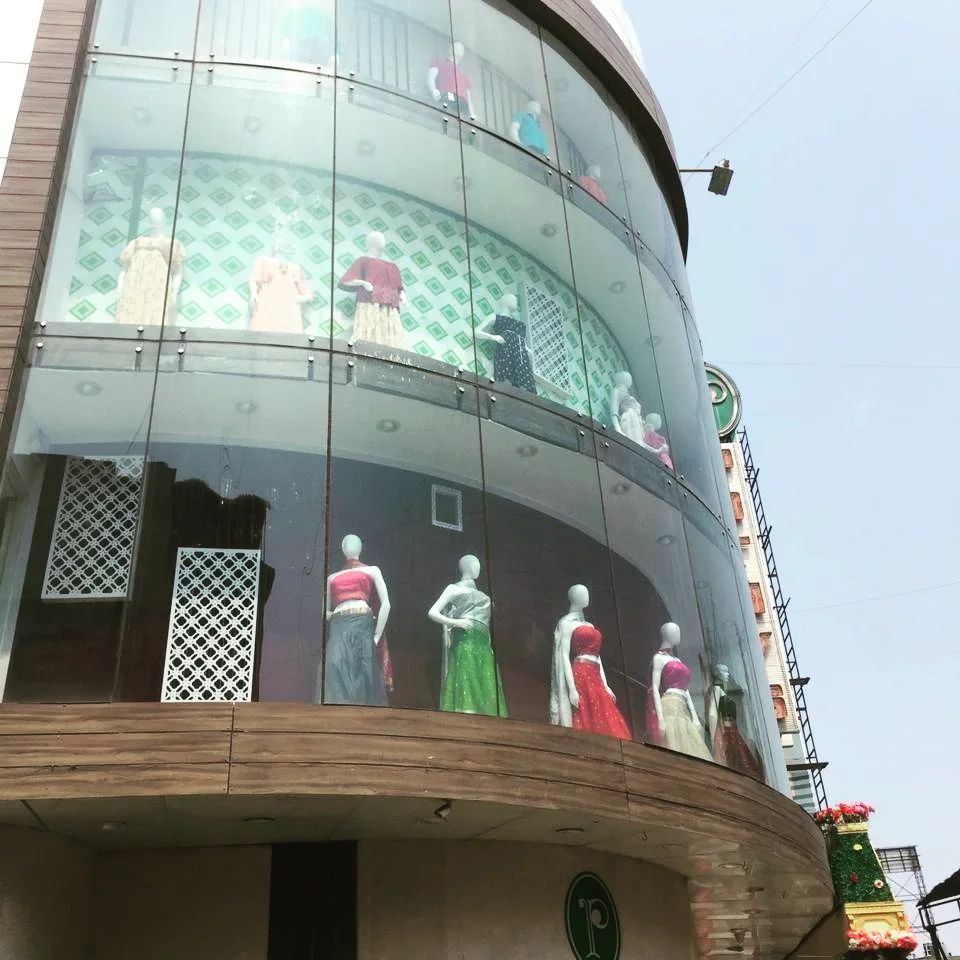

  • Safety Films are generally applied at high security zones like Embassies, Banks, Government Buildings, Malls, Airports, Hotels & Hospitals and any structure where glass is used including Glass Railings, Shower Cubicles, French Windows, Glass Doors & Windows in residential structures

Details

  • "MECHANICAL PROPERTIES
  • Thickness-4MIL
  • Tensile Strength At Break (MD/TD)->1900kg/cm2
  • Elongation At Break MD->130%
  • Peel Strength-Above 2.500kg/inch
  • Impact Test BS6206 For Class 'B'-Passes
  • SOLAR PROPERTIES
  • Visible Light Transmittance-90%
  • Ultra Violet Transmittance -<1%
  • Shading Coefficient-0.98
  • Emissivity-0.89
  • U Factor (BTU/hr./sq.ft.)-1.12
  • Total Solar Energy Rejection-13%"

Applications

  • Building woindows
